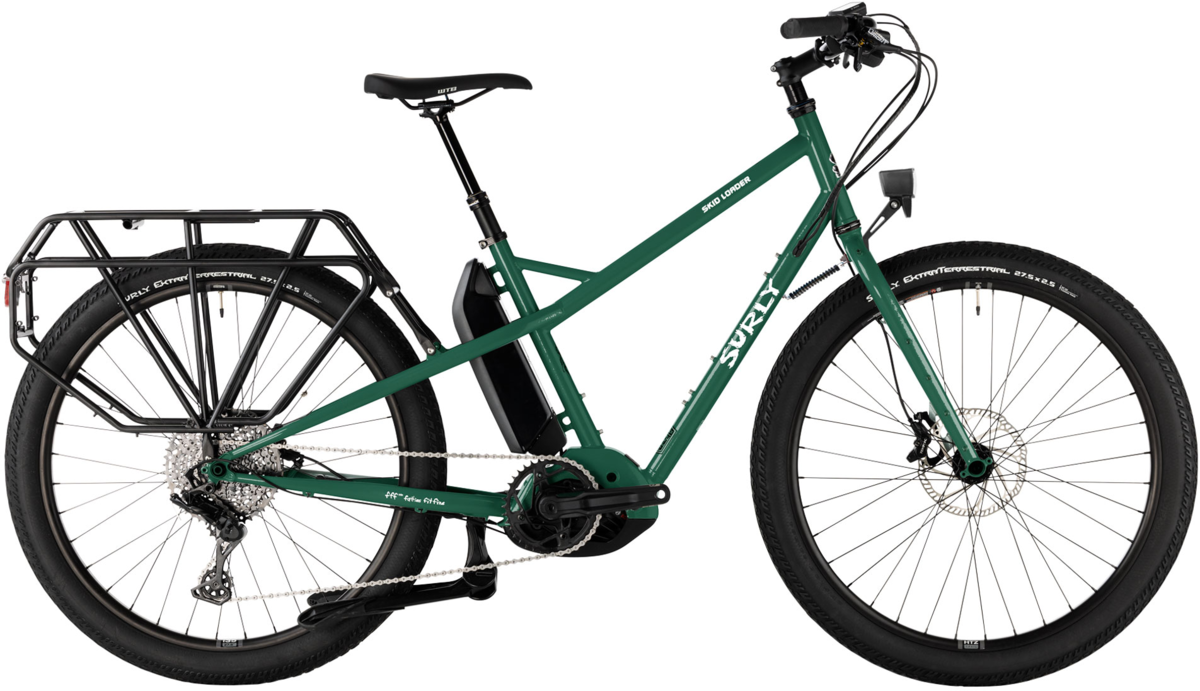

Surly Skid Loader

Surly Skid Loader
  • Color: Illegal Smile Green
$4,599.00
Color: Illegal Smile Green
Size: Select size
Wheel Size: 27.5-Inch
Please select options Unavailable

Details

A highly useful compact electric cargo bike, Surly Skid Loader is built for heavy loads and goes where traditional long-tails can’t quite fit. Engineered to expand utility and shrink footprints, it’s ideal for cutting down on car trips and navigating tight spaces — think bus racks, packed trains, or studios without storage space. Skid Loader comes in three broad frame sizes, and it’s equipped with a robust rear rack, the option to run dual batteries for greater range, and clearance for large-volume tires. For hauling more gear over longer distances and everyday rides on whatever surface, Skid Loader rolls along, happy to oblige.

- 100% Surly Chromoly Steel frame and fork, Natch tubing, double-butted main triangle, TIG welded, E.D. coated

- Bosch Performance Line CX (smart system) with Purion 200 Remote, with four levels of ride assist

- Three frame sizes (S,M,L) with dropper post and standover considerations

- Internal cable routing for dropper post, brake, derailleur, and lights

- Dedicated rear rack features M6 hardware and 100-lb. capacity

- Stable dual-leg kickstand and kickstand plate, plus mounts for fenders and a front rack

- Fully tested and rated electric bike component set?

- Tire clearance: 27.5 x 2.8” without fenders

- Front wheel stabilizer

- Integrated headlights and taillights for extra visibility

Frame SizeSmallMediumLarge
Rider height (cm / in) 149.9–182.9 / 59–72 160.0–190.5 / 63–75 167.6–198.1 / 66–78
Effective top tube (cm / in) 56.0 / 22.05 59.5 / 23.43 63.0 / 24.80
Standover (cm / in) 70.9 / 27.91 74.3 / 29.25 78.0 / 30.71
Reach (cm / in) 37.3 / 14.69 40.1 / 15.79 42.8 / 16.85
Stack (cm / in) 59.3 / 23.35 61.6 / 24.25 64.0 / 25.20
Seat tube length (cm / in) 44.5 / 17.52 44.5 / 17.52 50.0 / 19.69
Headtube length (cm / in) 16.0 / 6.30 18.5 / 7.28 21.0 / 8.27
Headtube angle (degree) 69 69 69
Seat tube angle (degree) 72.5 72.5 72.5
BB drop (cm / in) 6.0 / 2.36 6.0 / 2.36 6.0 / 2.36
Chainstay length (cm / in) 53.0 / 20.87 53.0 / 20.87 53.0 / 20.87
Fork length axle to crown (cm / in) 42.0 / 16.54 42.0 / 16.54 42.0 / 16.54
Fork offset (cm / in) 5.0 / 1.97 5.0 / 1.97 5.0 / 1.97
Wheelbase (cm / in) 115.3 / 45.39 119.0 / 46.85 122.6 / 48.27
Crank arm length (cm / in) 17.0 / 6.69 17.5 / 6.89 17.5 / 6.89
Handlebar width (cm / in) 71.8 / 28.27 73.5 / 28.94 73.5 / 28.94
Stem length (cm / in) 6.0 / 2.36 7.0 / 2.76 7.0 / 2.76
Stem length (cm / in) 6.0 / 2.36 7.0 / 2.76 7.0 / 2.76

Specs

Frame Skid Loader 100% Surly Chromoly Steel, Natch tubing, double-butted main traingle, TIG welded, E.D. coated
Fork Dinner Fork - 100% Surly Chromoly Steel, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated
Rims WTB HTZ Trail i35 27.5", TCS 2.0
Hubs Novatec 15 x 110 mm, 6-bolt, 36h / Novatec 12 x 148 mm, 6-bolt, 36h
Spokes 14 Gauge Stainless
Tires Surly ExtraTerrestrial 27.5 x 2.5", 60 tpi, tubeless ready
Crankset FSA CK-763, 38t
Shifters Shimano CUES U6000
Rear Derailleur Shimano CUES U6000 GS
Cassette/Freewheel Shimano Linkglide LG300 11-48t 10sp
Chain Shimano Linkglide LG500
Brakes Front: Tektro HD-M750, 4 piston Rear: Tektro HD-M750, 4 piston
Rotors Tektro 180/180, 6-Bolt
Brake Levers Tektro HD-M750
Handlebars Surly Terminal
Tape/Grips Velo Black
Stem Kalloy 31.8
Headset Cane Creek Viscoset Upper / 40 Series Lower 1-1/8"
Seatpost Tranz-X YSP15 Dropper, 120 mm travel
Saddle WTB Volt Medium
Accessories & Extras Integrated headlights and taillights
Motor Bosch Performance Line Cargo (Smart System) with Purion 200 Remote
Battery Bosch Lithium-Ion 545Wh
Controller/Display Bosch Purion 200 Remote
Charger Bosch 4A charger

* Subject to change without notice.

Part Numbers

Option UPC MPN
Illegal Smile Green / Small / 27.5-Inch 708752487512 BK01298
Illegal Smile Green / Medium / 27.5-Inch 708752487536 BK01299
Illegal Smile Green / Large / 27.5-Inch 708752487550 BK01300
